HVAC/R Push-to-Connect Elbows

providing a quicker and safe connection for HVAC/R systems

Connect refrigerant lines in seconds with QuickFitting HVAC/R Push-to-Connect fittings. Built for HVAC and refrigeration systems, they eliminate the need for brazing, help reduce installation time, and provide secure, leak-resistant connections for approved refrigerants, including select A2L-classified refrigerants.

Features & Benefits

Fast Installation
No Brazing, Flaring, or Swaging
Leak-Resistant Performance
A2L Compatible: R452B, R454B
Approved Refrigerants: R22, R32, R134a, R290, R404a, R407a, R407c, R410a, R500, R600a
UL Certified
Corrosion-Resistant Brass
Removable
5 Year Limited Warranty

Approved Applications

Residential HVAC
Commercial HVAC
Copper Line Sets
Coated Aluminum Line Sets
Mini-Split HVAC Units
Unitary Indoor Coils

Where to buy

View Resources

Product Details for HVAC/R Push-to-Connect Elbows

FREQUENTLY ASKED QUESTIONS

Everything you need to know about HVAC/R push-to-connect elbows.

What is an HVAC/R Push-to-Connect Elbow?

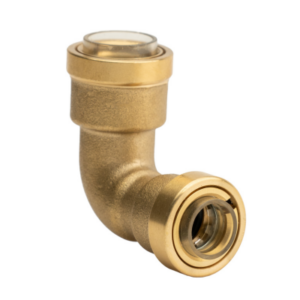

An HVAC/R Elbow is a 90-degree fitting designed to change the direction of refrigerant tubing without brazing, flaring, or swaging.

When should I use an HVAC/R Elbow?

HVAC/R Elbows are ideal for routing refrigerant lines around obstacles, through tight spaces, or wherever a 90-degree directional change is required.

What tubing materials are compatible with HVAC/R Elbows?

QuickFitting HVAC/R Elbows are approved for use with copper and coated aluminum line sets.

Do HVAC/R Elbows require brazing or special tools?

No. HVAC/R Elbows install using push-to-connect technology and do not require brazing, flaring, swaging, or open flames.

Are HVAC/R Elbows approved for refrigerant applications?

Yes. HVAC/R Elbows are specifically designed for approved HVAC/R refrigerant line applications.

Which refrigerants are compatible with HVAC/R Elbows?

HVAC/R Elbows are approved for use with major refrigerants, including R-410A, R-32, R-454B, R-452B, and other approved refrigerants.

Are HVAC/R Elbows compatible with A2L refrigerants?

Yes. QuickFitting HVAC/R Elbows are UL certified for use with approved A2L refrigerants.

How do HVAC/R Elbows help prevent leaks?

The patented double O-ring and grip ring seal technology helps create a secure, leak-resistant connection that withstands vibration, pulsation, and temperature fluctuations.

Can HVAC/R Elbows be removed after installation?

Yes. HVAC/R Elbows can be disconnected using a QuickFitting release tool, allowing for easier maintenance and future system modifications.

What are the advantages of using an HVAC/R Elbow instead of bending tubing?

HVAC/R Elbows provide a precise 90-degree turn without specialized bending tools, helping reduce installation time while minimizing the risk of kinking refrigerant lines.

What applications are HVAC/R Elbows commonly used in?

HVAC/R Elbows are commonly used in residential and commercial HVAC systems, mini-split installations, equipment replacements, and refrigerant line rerouting projects.

What is the pressure rating of HVAC/R Elbows?

QuickFitting HVAC/R Elbows are rated for pressures up to 870 psi (60 bar), making them suitable for approved HVAC/R applications.
