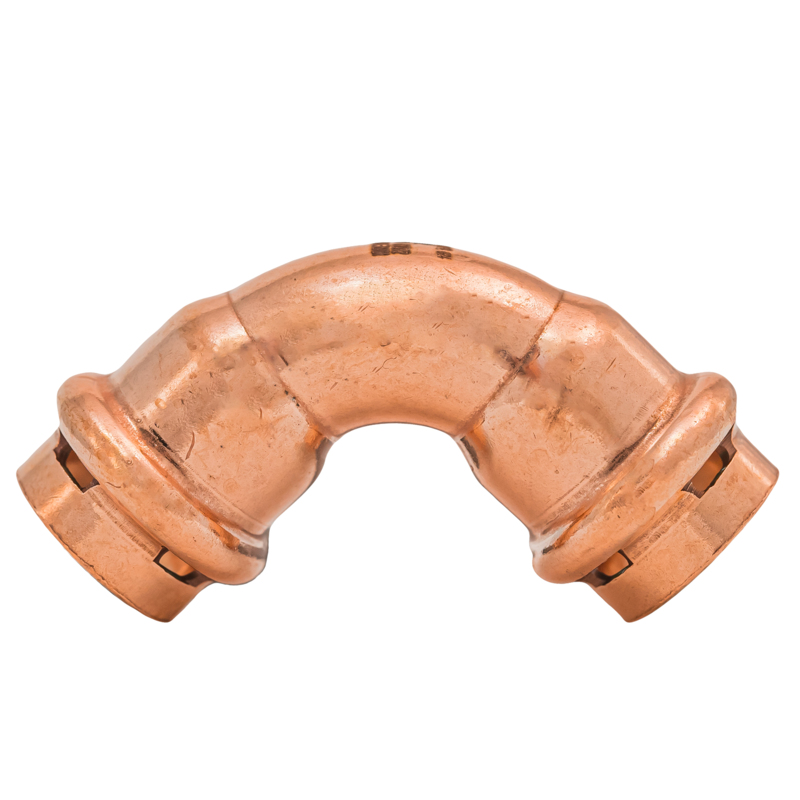

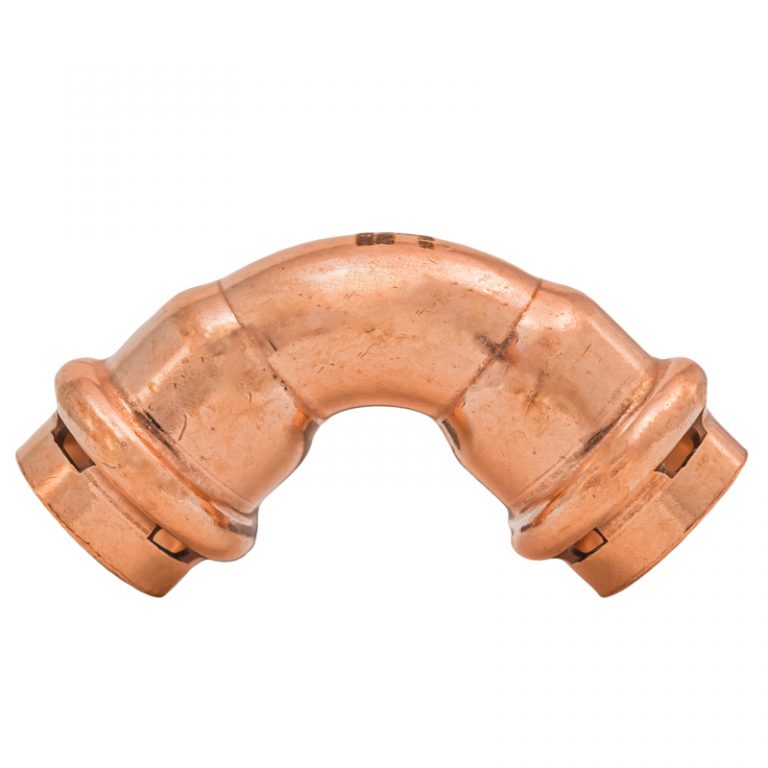

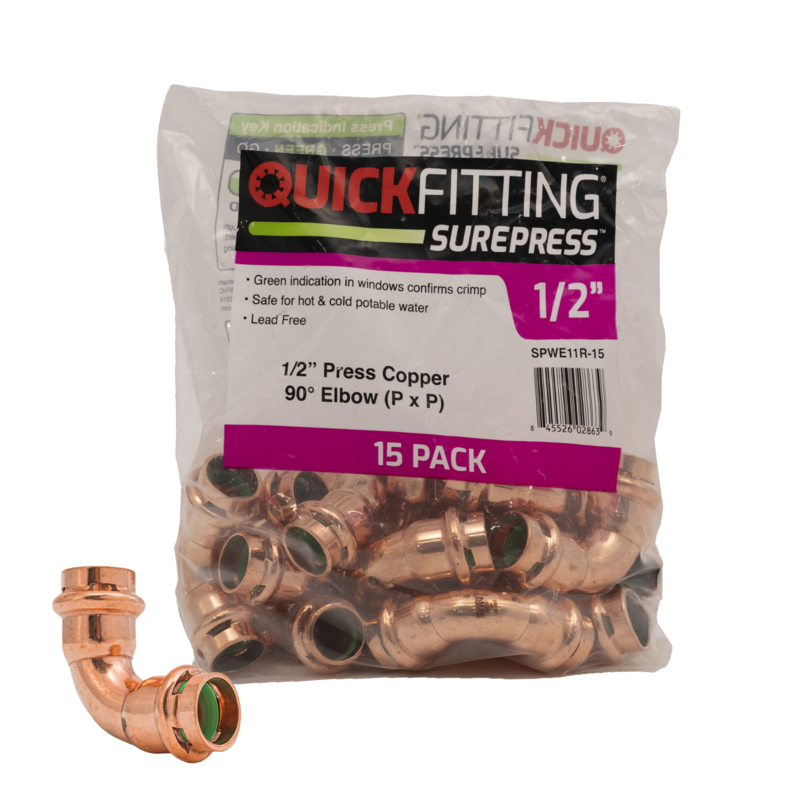

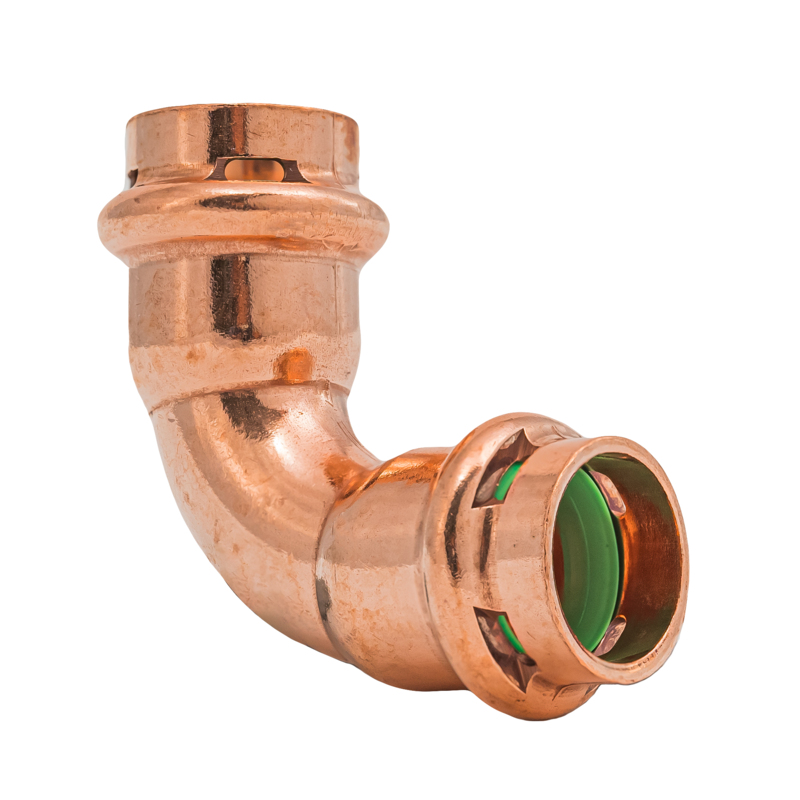

Copper Press 90-Degree Elbows

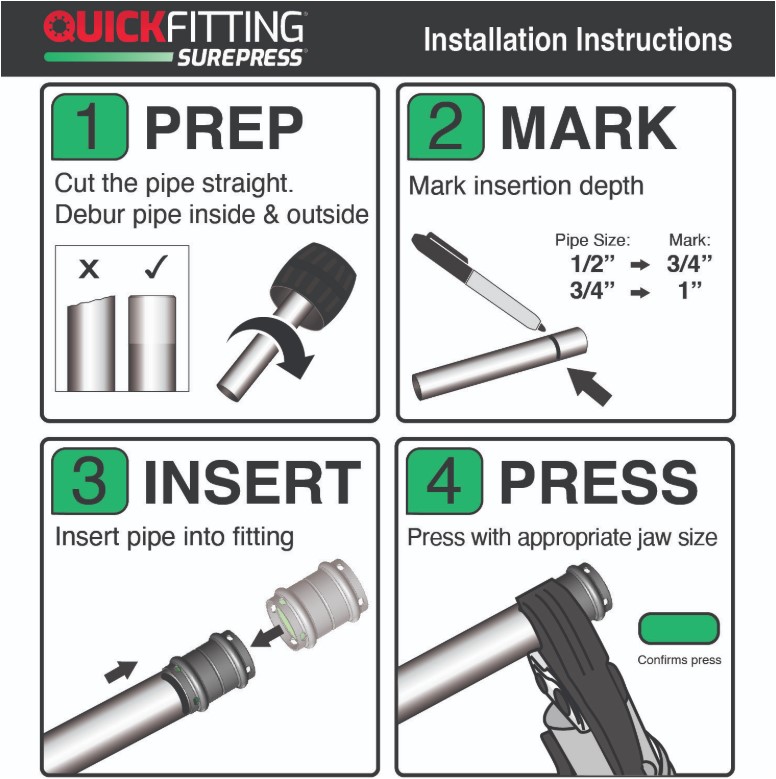

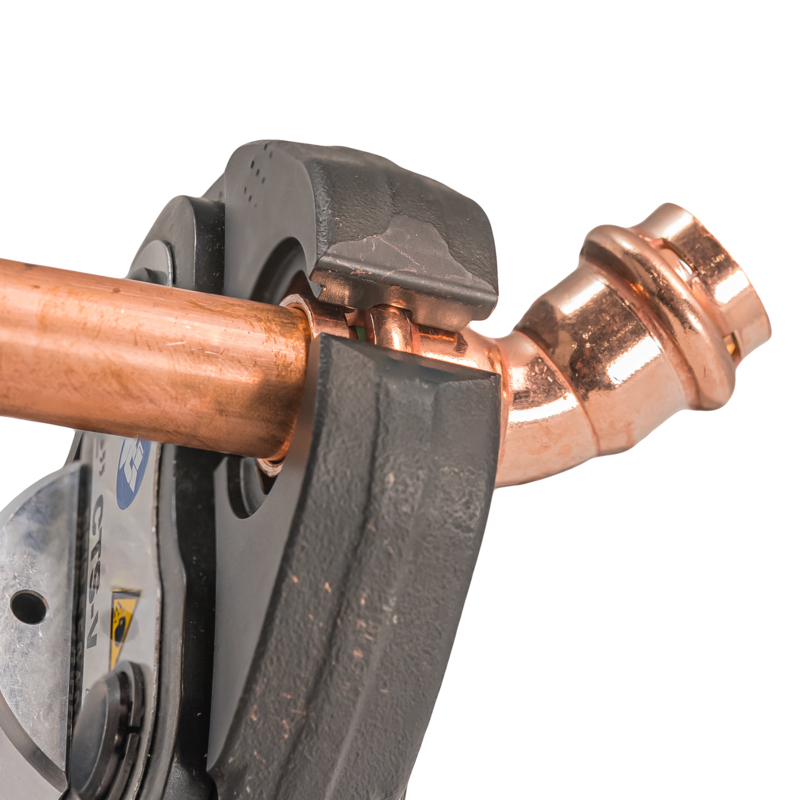

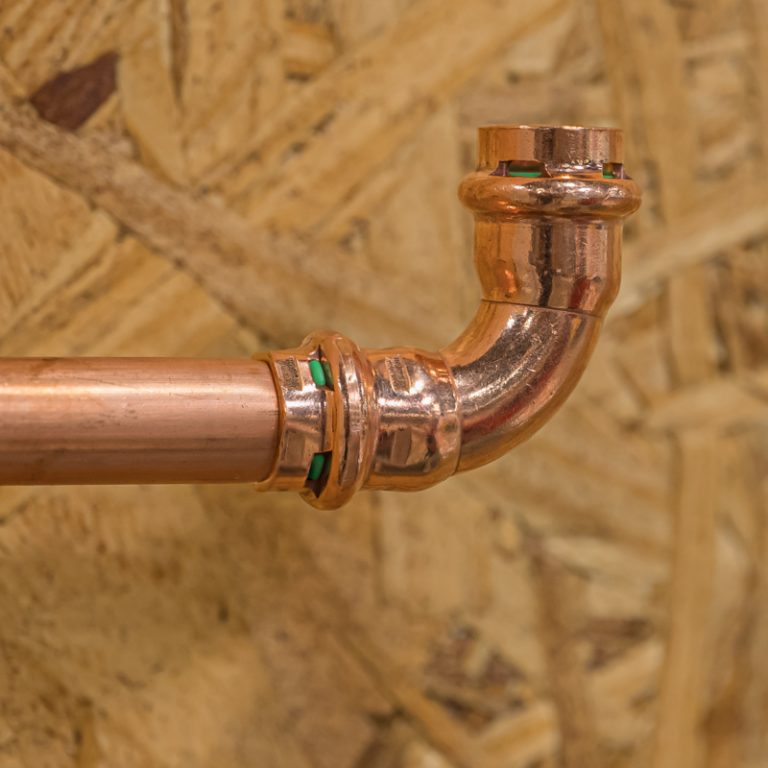

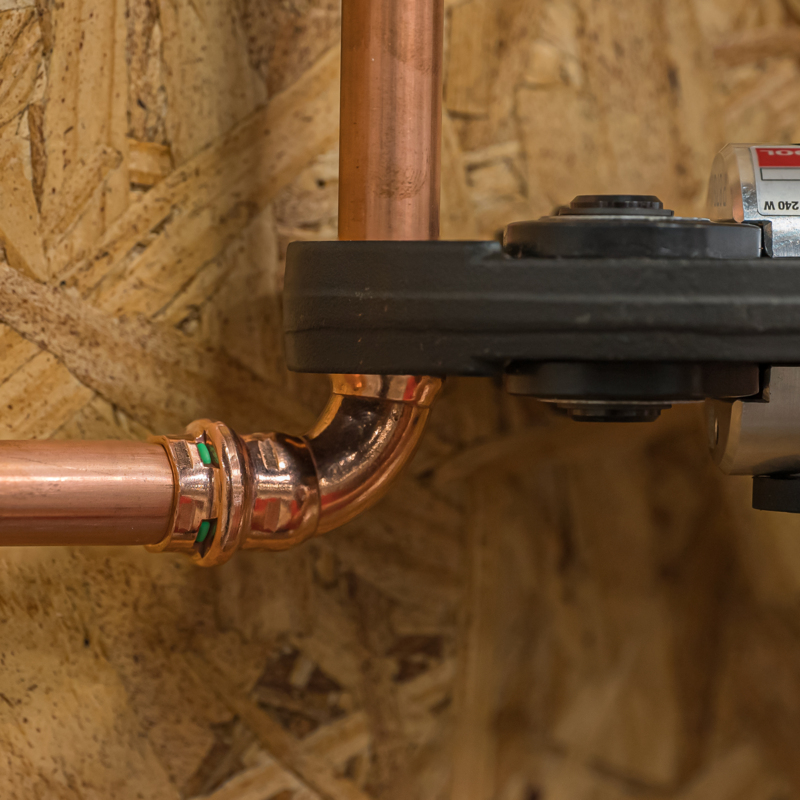

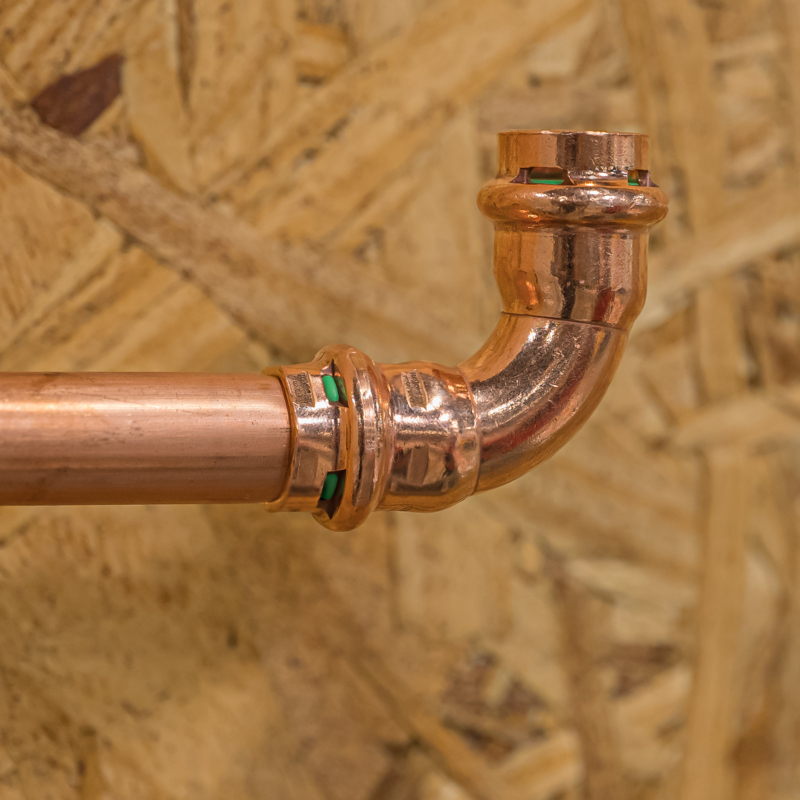

To install, insert the two pipe ends into the elbow’s sockets, making sure they are fully seated. Because it’s a right angle, you’ll position the pipes in the exact orientation needed for the turn (double-check alignment before pressing). Then attach your press tool around one end of the elbow and activate it to crimp that side; repeat on the other side. Each press end will seal the O-ring onto the pipe, forming a leak-tight joint. The entire operation takes only a few seconds per side. Once both ends are pressed, the 90° elbow is securely in place. Remember that after pressing, the elbow is fixed – if you need to adjust the angle or orientation, you should do so before pressing or re-cut and re-press if necessary, rather than force it.

Yes – a properly pressed elbow is extremely reliable. SurePress 90° elbows are engineered to meet the same standards as traditional fittings. The pressed connections are rated to the same pressure (up to 300 psi for water) and temperature ranges as soldered joints. The joint’s strength comes from the mechanical crimp and the compression of the seal ring, which together create a permanent connection. In the field, press elbows have proven to hold up in both residential and commercial plumbing systems under vibration and thermal expansion, comparable to soldered elbows. As long as the press procedure is done correctly (pipe fully inserted, tool properly placed, etc.), the elbow will not leak or pull apart – it becomes a solid part of the copper system.

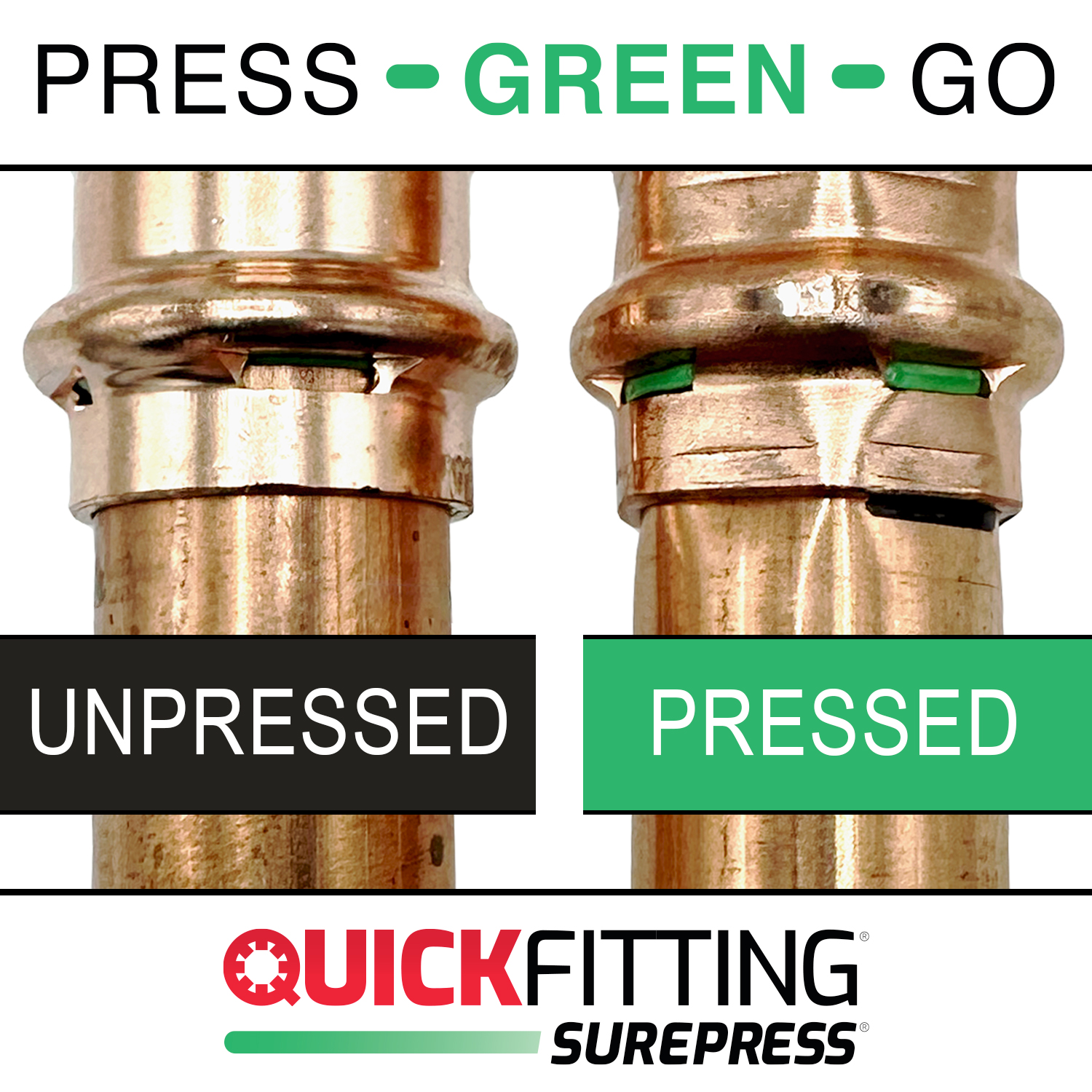

The primary benefits are speed and safety. You can install a SurePress elbow in a fraction of the time it takes to solder – there’s no flux, no heating, and no cooldown period. This can cut labor time significantly, especially if a job has many elbows. It’s also safer in tight or finished spaces since there’s no open flame risk to nearby structure. Additionally, SurePress elbows have the green visual indicator bands, so after crimping you get immediate confirmation that the joint is pressed and sealed (a quick glance ensures no elbow was left un-pressed before you pressurize the system). Finally, because the inside diameter of the SurePress elbow matches copper tube standards, you maintain full flow through the turn, just as you would with a soldered elbow – there’s no internal obstruction, ensuring the performance of the system isn’t compromised.

It’s a 90-degree elbow fitting where one end is a male (street) end and the other end is a female press end. In other words, one side of the elbow can slide into another fitting. A SurePress 90° street elbow allows you to make a right-angle turn directly out of another fitting without needing a short piece of pipe. For example, you could insert the male end of a street elbow into a press tee or another elbow to immediately turn the corner. This fitting is useful for tight spaces and for reducing the number of components because it effectively combines an elbow and a connecting piece into one.

The main reason is to save space or extra joints. A street elbow can plug directly into another fitting. If you have two 90° turns back-to-back, using one regular elbow would require a small pipe segment or a coupling between them; using a street elbow, you can connect them directly (male end into female socket). Similarly, coming off a valve or tee, a street elbow lets you make the turn immediately. This reduces solder joints or press joints by one, which not only saves time and cost but also eliminates a potential leak point. In compact areas like near boilers, water heaters, or inside wall cavities, a street elbow can make the layout cleaner and allow pipes to fit where a standard elbow + coupling might not.

Begin by inserting the street elbow’s male end into the adjacent fitting’s socket. Ensure it’s fully seated. For instance, if you’re connecting it to a ¾″ press tee, push the street elbow in until it bottoms out in the tee. Make sure to orient the elbow at 90° in the direction you need. Next, press that joint by running the press tool on the outer fitting (the tee in this example) – this secures the street elbow’s male end into place. Then insert your copper pipe into the street elbow’s female press end as you would with any press fitting, and press that side. Now the street elbow is pressed on both ends. Essentially, you’ve formed one press connection between the street elbow and the first fitting, and a second press connection between the street elbow and the pipe. Always verify both have been pressed (the street side won’t have its own indicator, but the mating fitting’s indicator or a visual check of the crimp will confirm it; the female press side of the elbow will show the green band when done).

Yes. When installed properly, a street elbow configuration is just as leak-tight and strong. The male end pressed into another fitting is a standard press joint – the O-ring in the receiving fitting creates that seal. The female end pressed to pipe is another standard press joint. So effectively, a street elbow doesn’t introduce any new failure mode; it simply removes a piece of pipe between two fittings. SurePress street elbows are made to the same specifications as other fittings, and the pressed connections are all reliable. In fact, by having one less fitting overall (since the street elbow does two jobs in one), you have one less joint that could potentially leak. As with all press connections, as long as you see that each press was successful (using visual indicators and tug checks), you can trust the street elbow assembly for full operational pressure.
