Press Water Heater Connectors

with visual indication

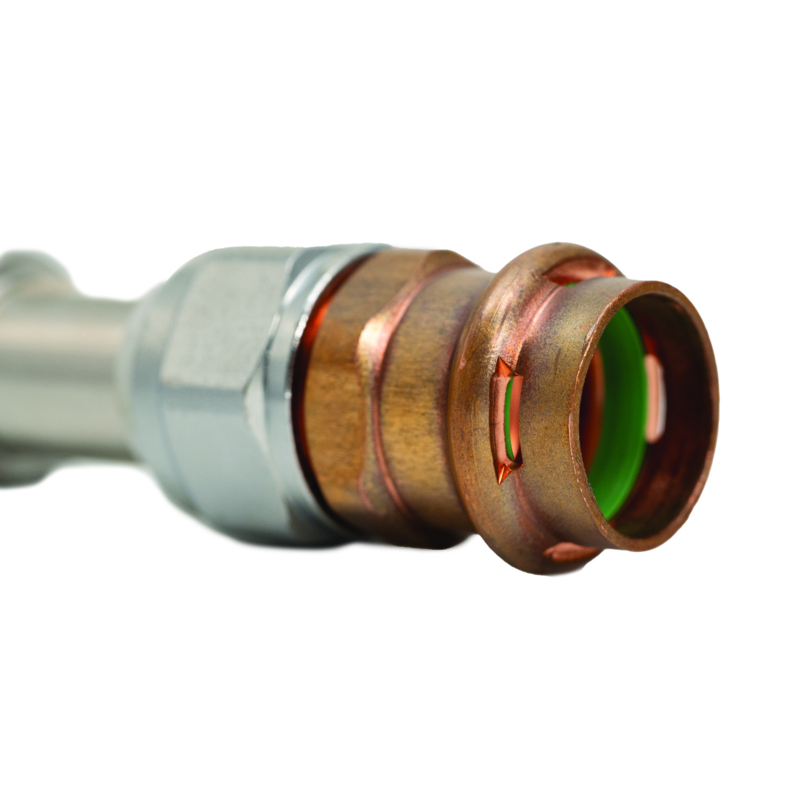

SurePress® is an innovative line of press fittings that visually confirms a pressed connection. Green indication will fill windows once pressed, confirming a successful seal. This allows installers and inspectors to quickly identify if a fitting has been pressed prior to pressure testing. Simply press the fitting, see green and go!

Features & Benefits

Flexible connectors accommodate for misalignment of supply lines
SurePress® visual indication confirms a successful press
Green indication visible from up to 5 ft away
Compatible with leading hydraulic press tool brands
Approved for electric and gas water heaters with flue vent
5-Year Limited Warranty

Approved Applications

Hot and cold potable water

Where to buy

Product Details for Press Water Heater Connectors

FREQUENTLY ASKED QUESTIONS

Everything you need to know about press water heater connectors.

What types of water heaters are SurePress® Water Heater Connectors compatible with?

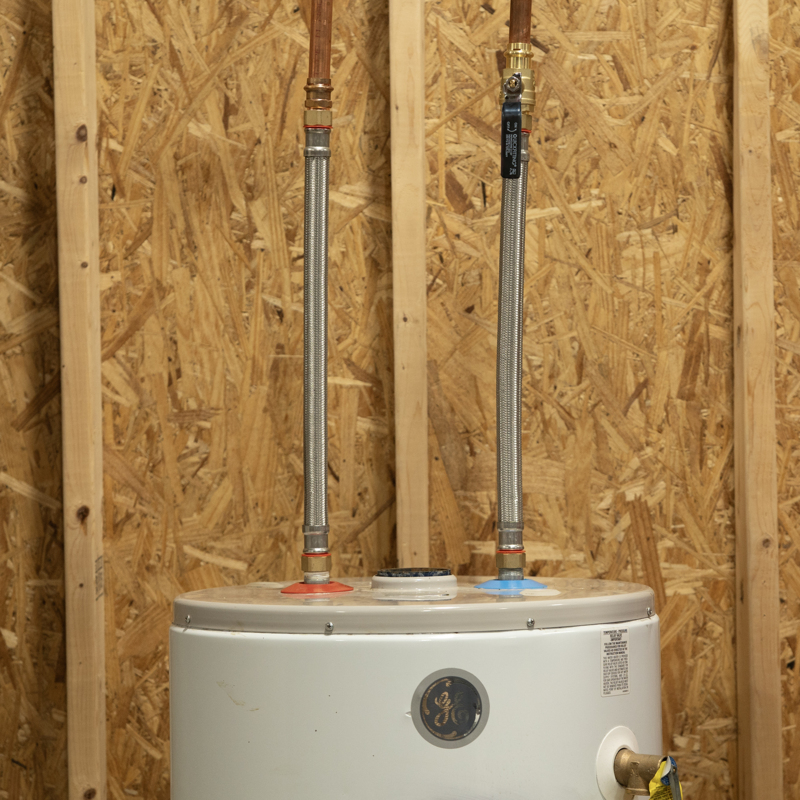

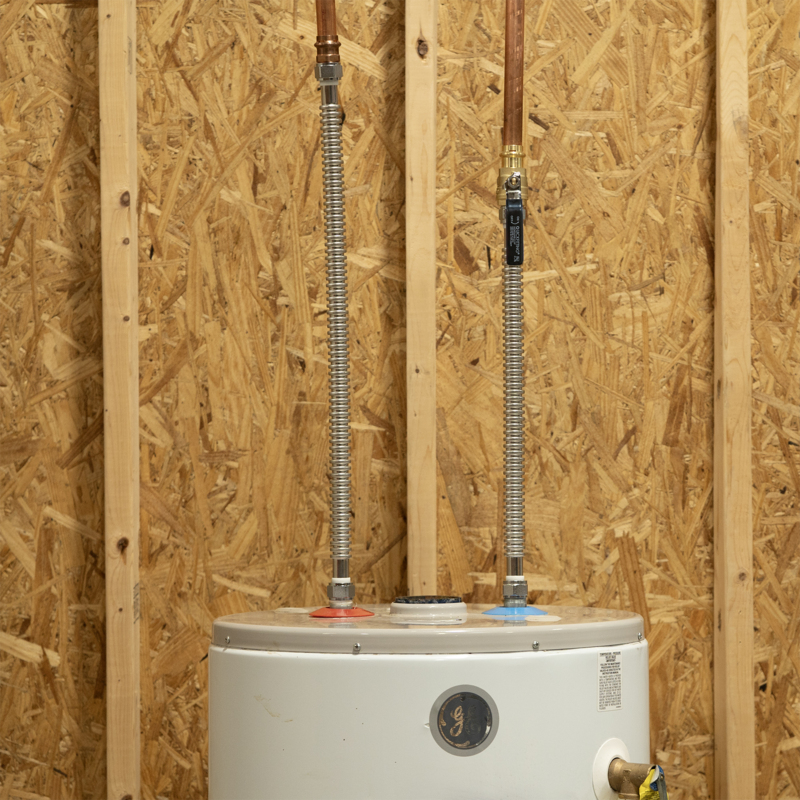

SurePress® Water Heater Connectors are approved for use with both electric water heaters and gas water heaters equipped with a flue vent. They are designed for potable water applications and water heater supply lines.

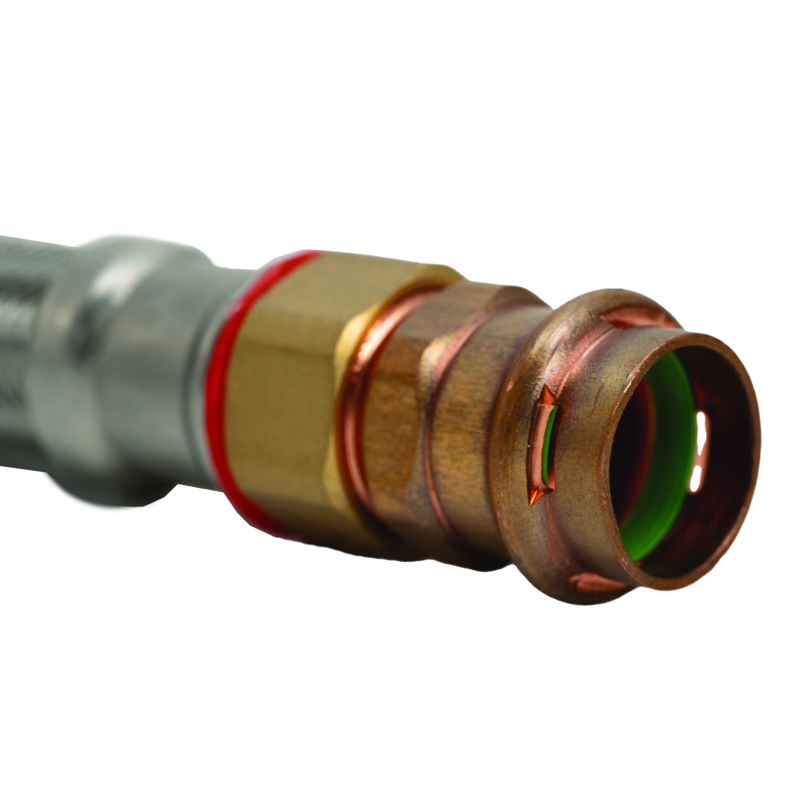

How does the SurePress® visual indication work?

SurePress® features a built-in visual confirmation system that lets installers and inspectors know when a connection has been successfully pressed. Once the fitting is properly pressed, a green indication becomes visible through the inspection windows and can be seen from up to 5 feet away, making it easy to identify completed connections before pressure testing.

What are the advantages of using SurePress® Water Heater Connectors instead of traditional installation methods?

SurePress® Water Heater Connectors eliminate the need for soldering or open flames during installation. This means no heat, no flame, and no Hot Work Permit is required. The flexible stainless steel hoses also help accommodate minor supply line misalignment, making installations faster and easier.

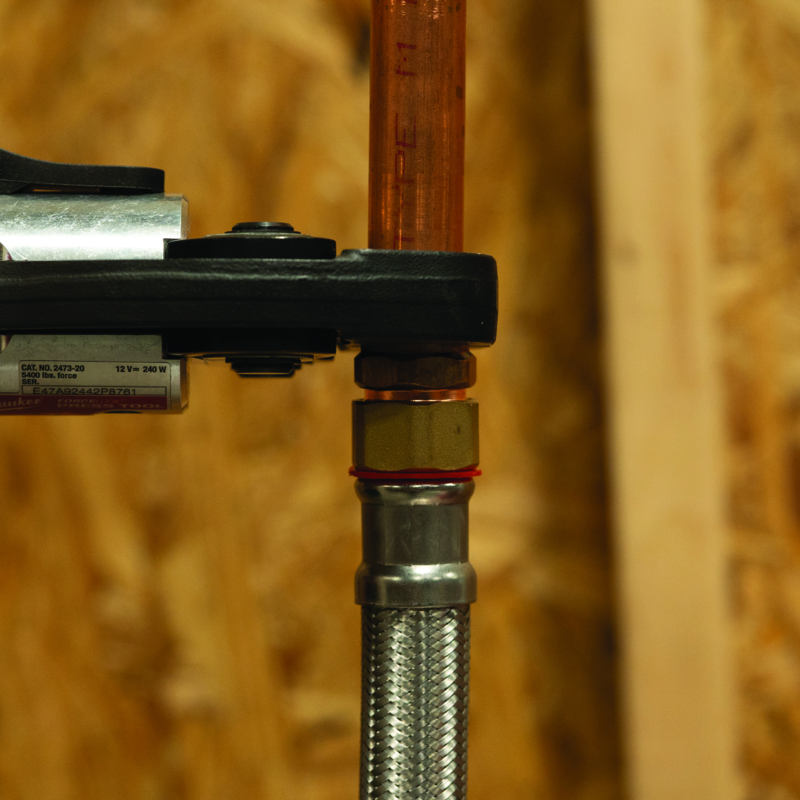

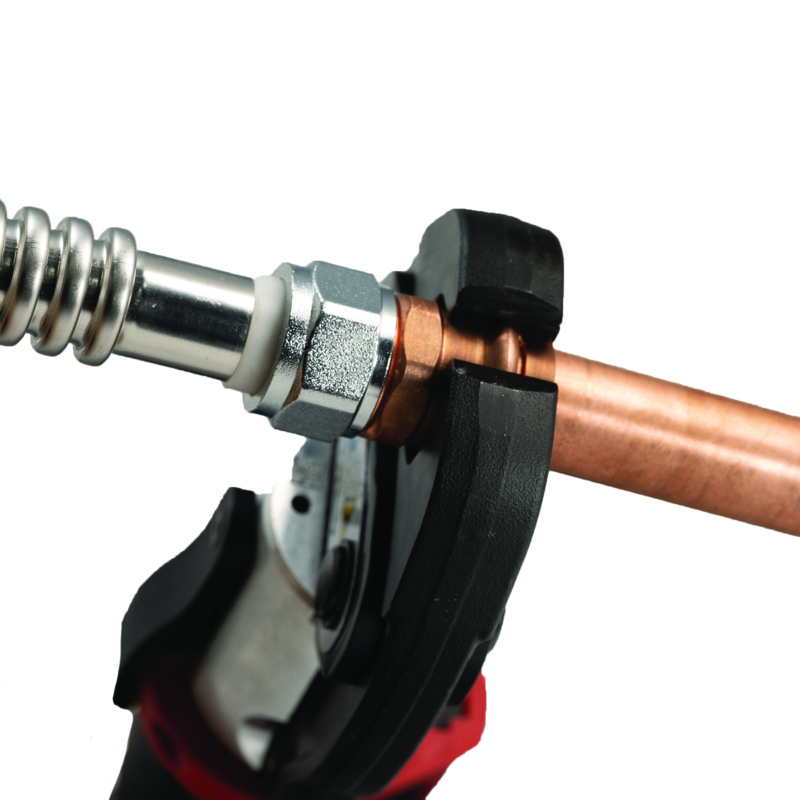

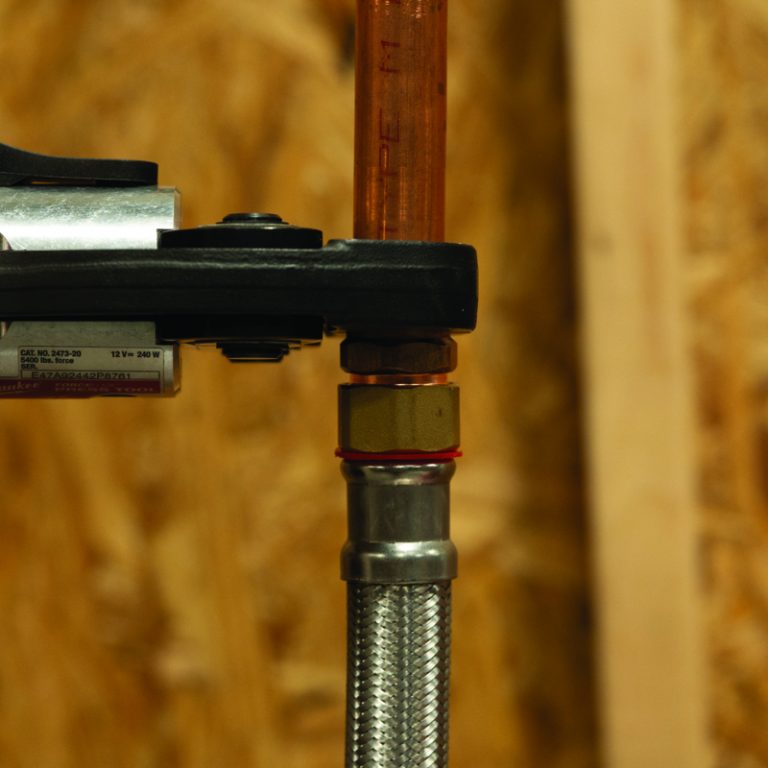

Which press tools are compatible with SurePress® Water Heater Connectors?

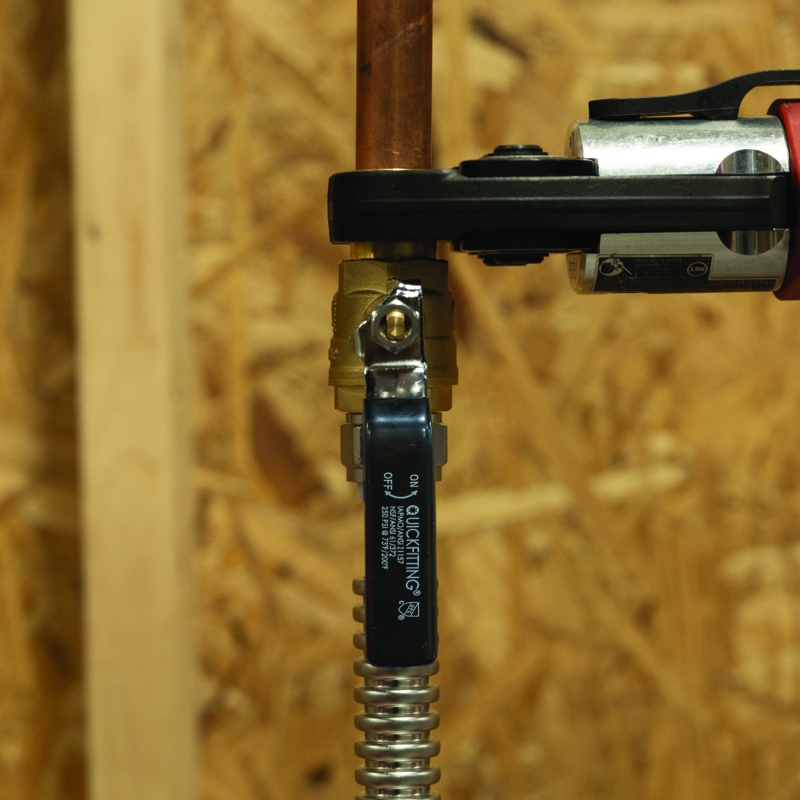

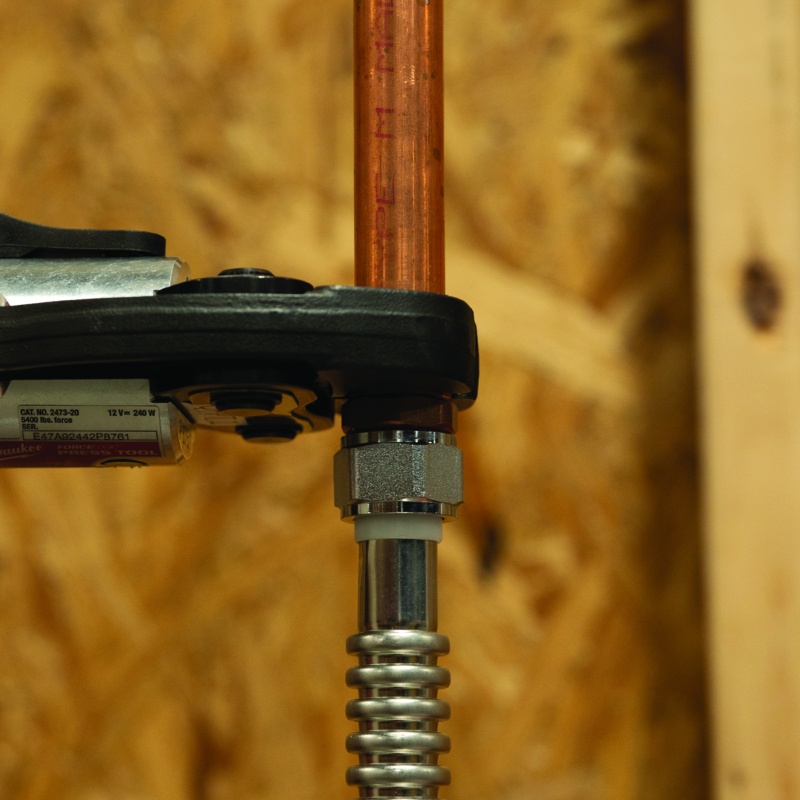

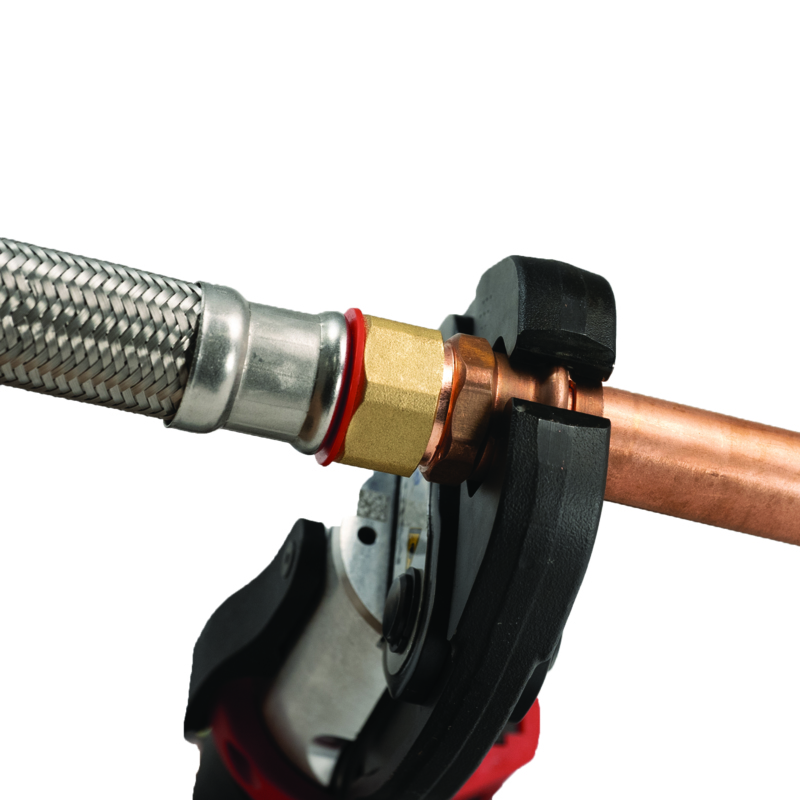

SurePress® Water Heater Connectors are compatible with all leading brand hydraulic press tools and jaws, allowing contractors to use the equipment they already own without requiring specialized tools.

What connector styles are available?

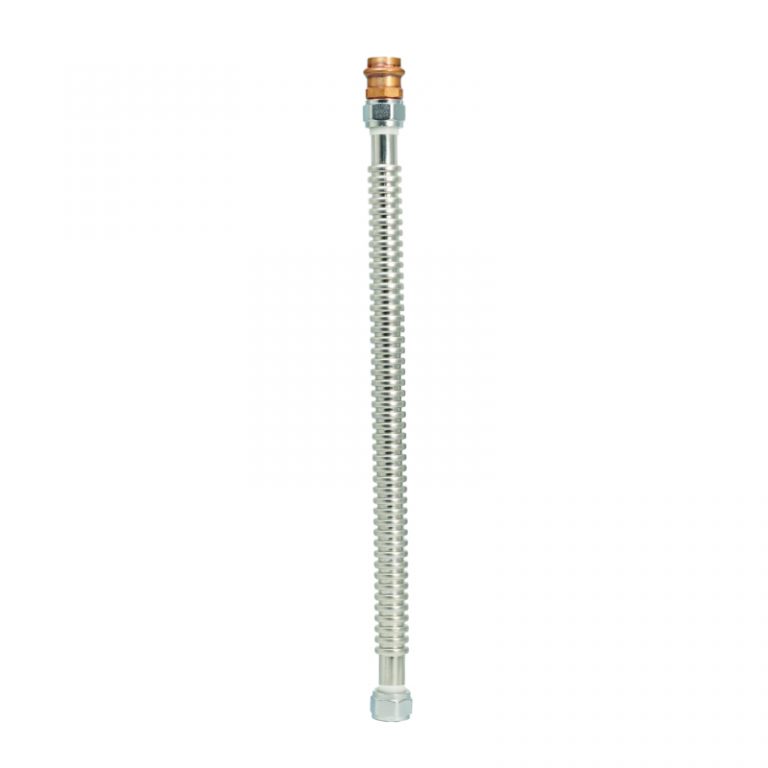

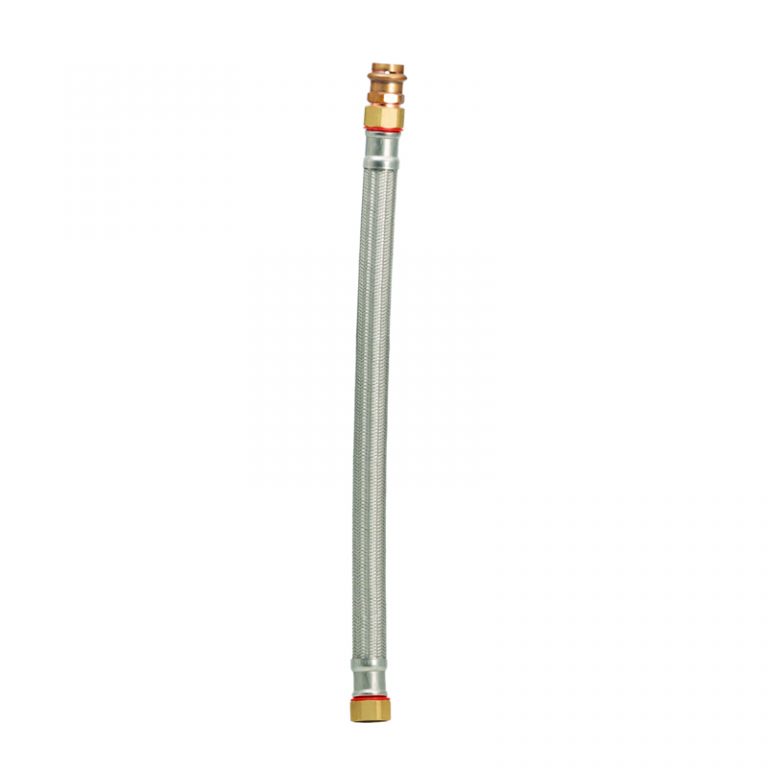

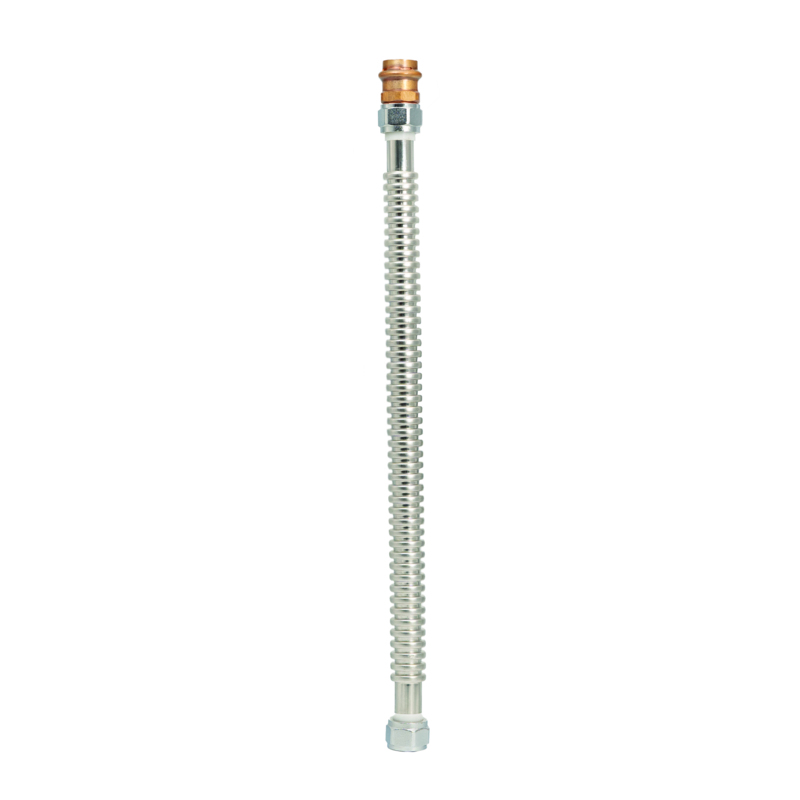

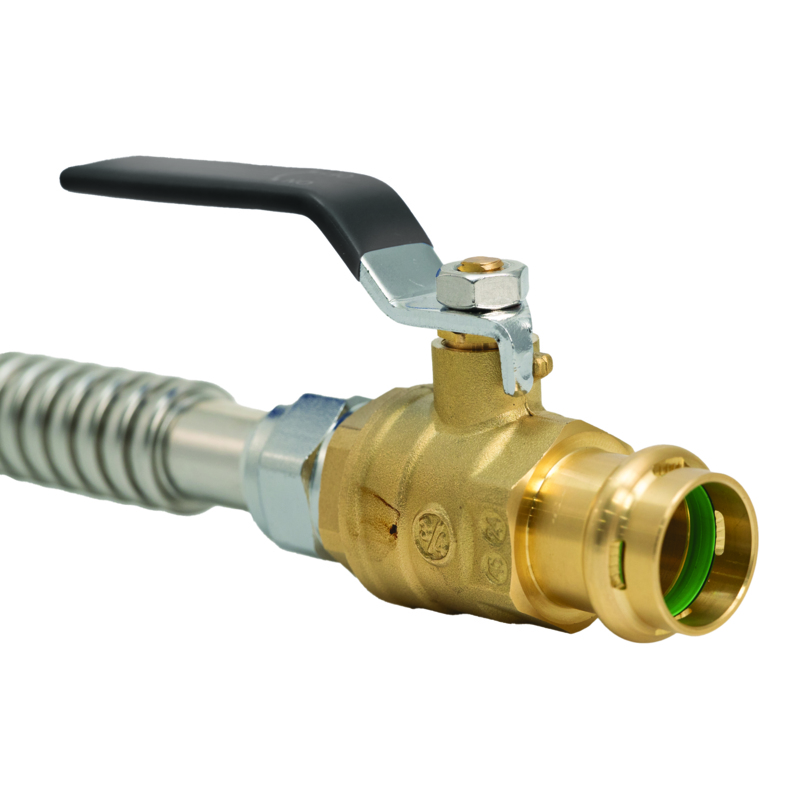

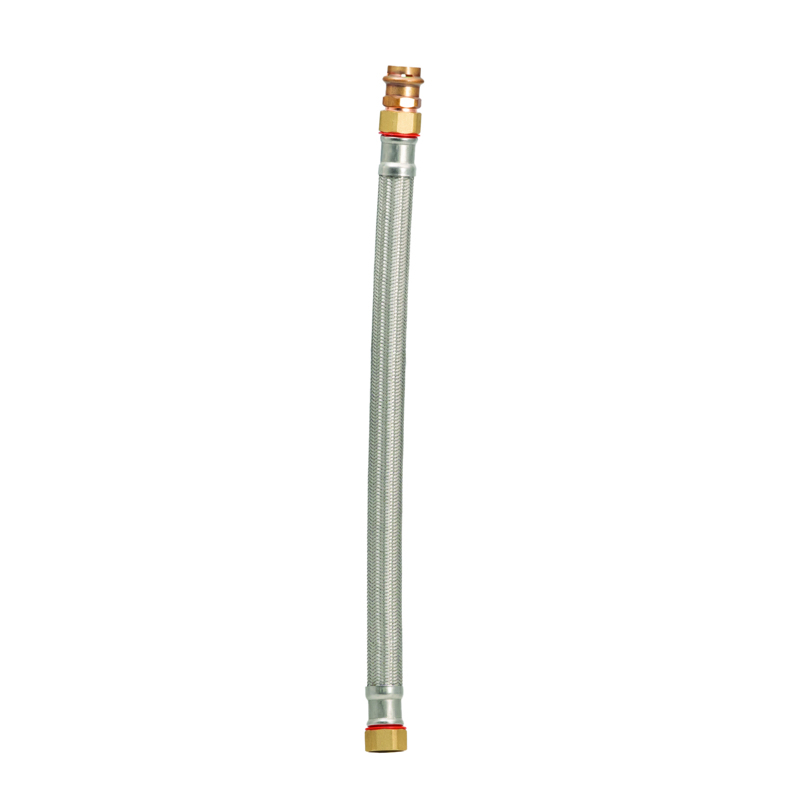

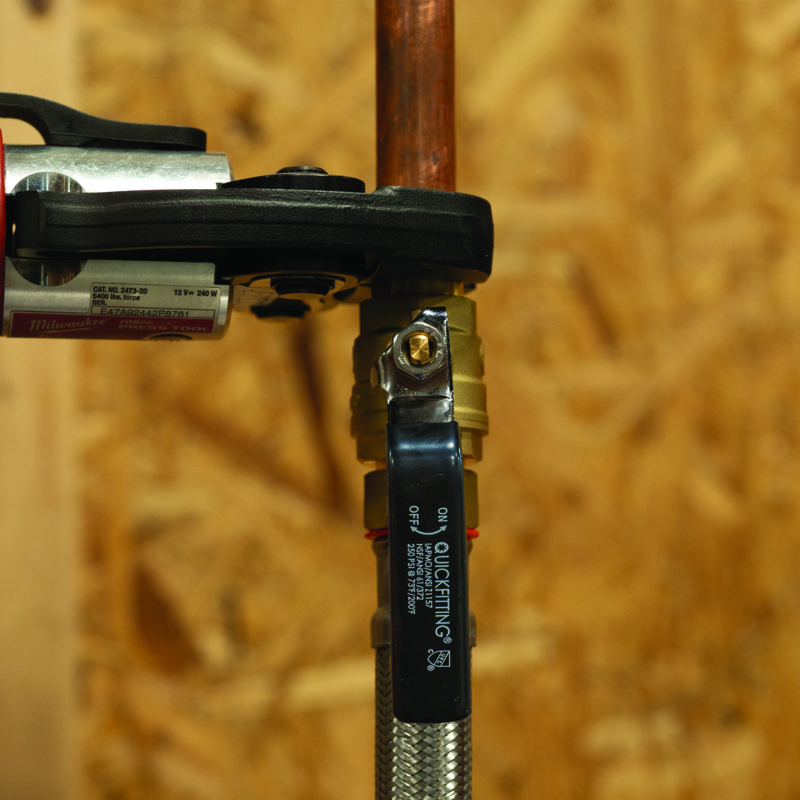

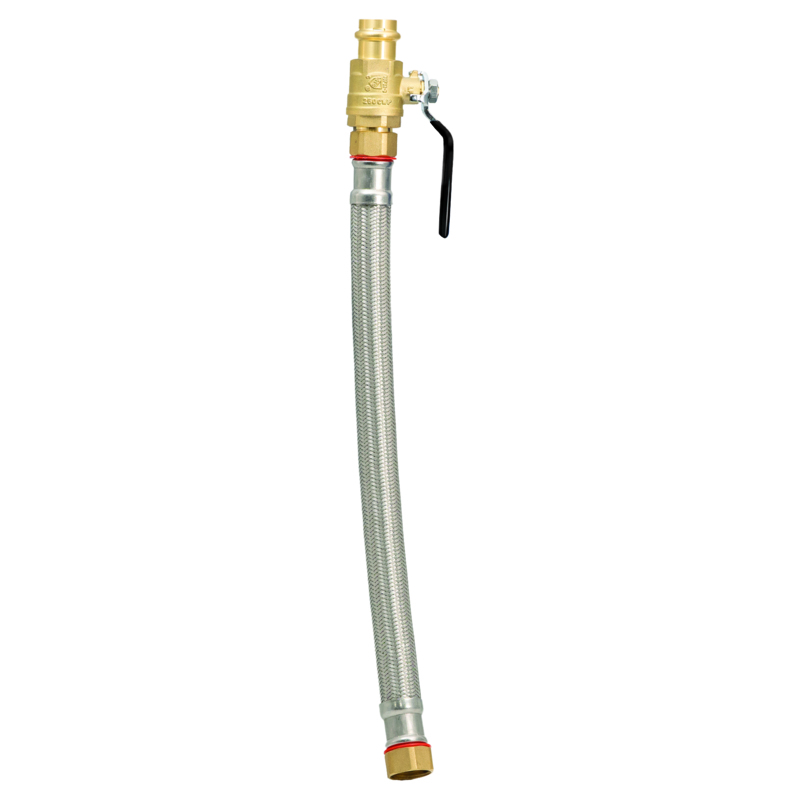

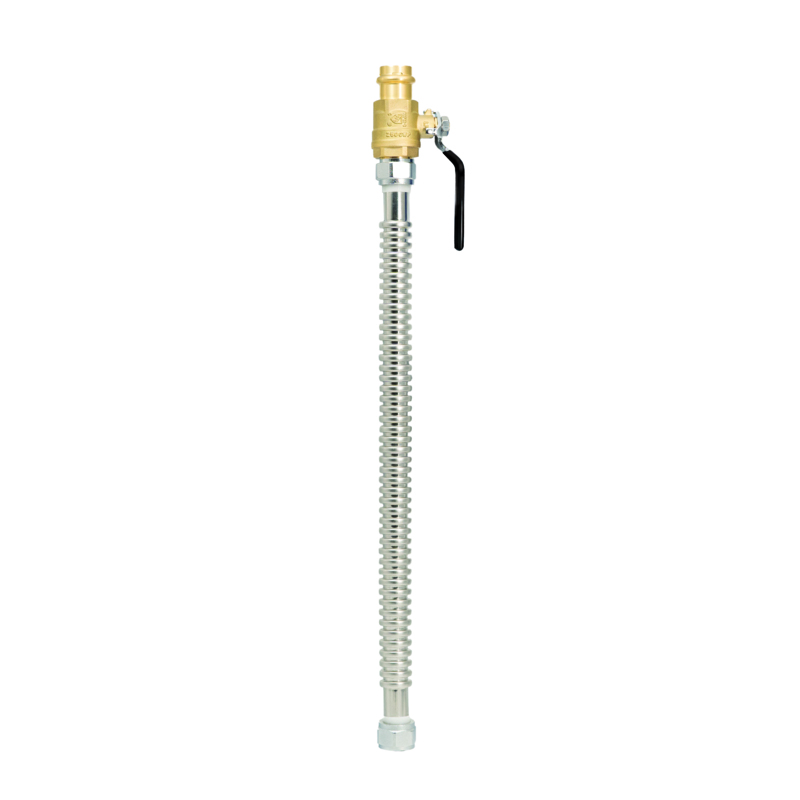

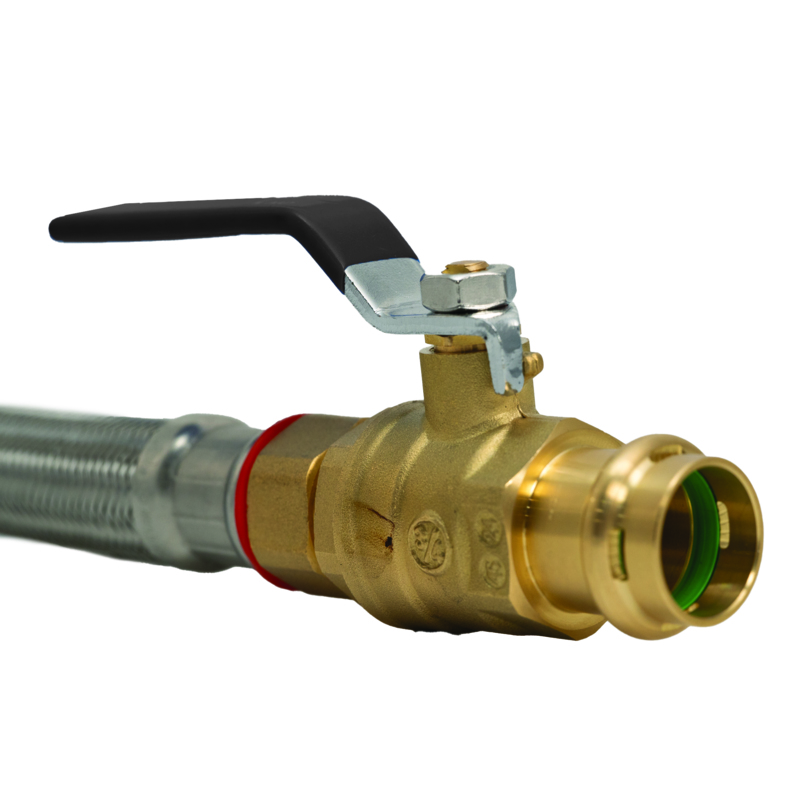

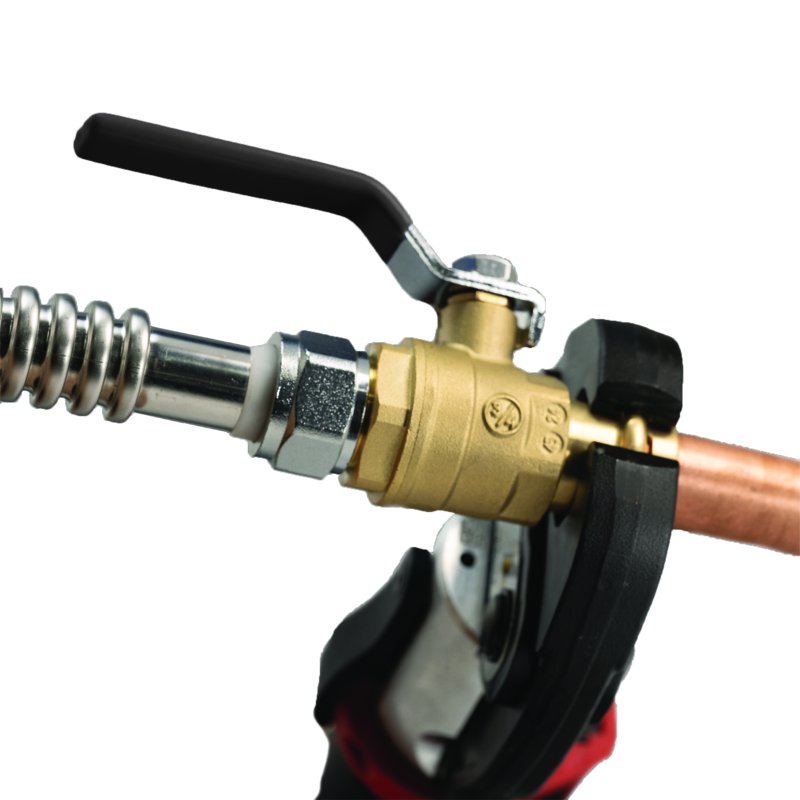

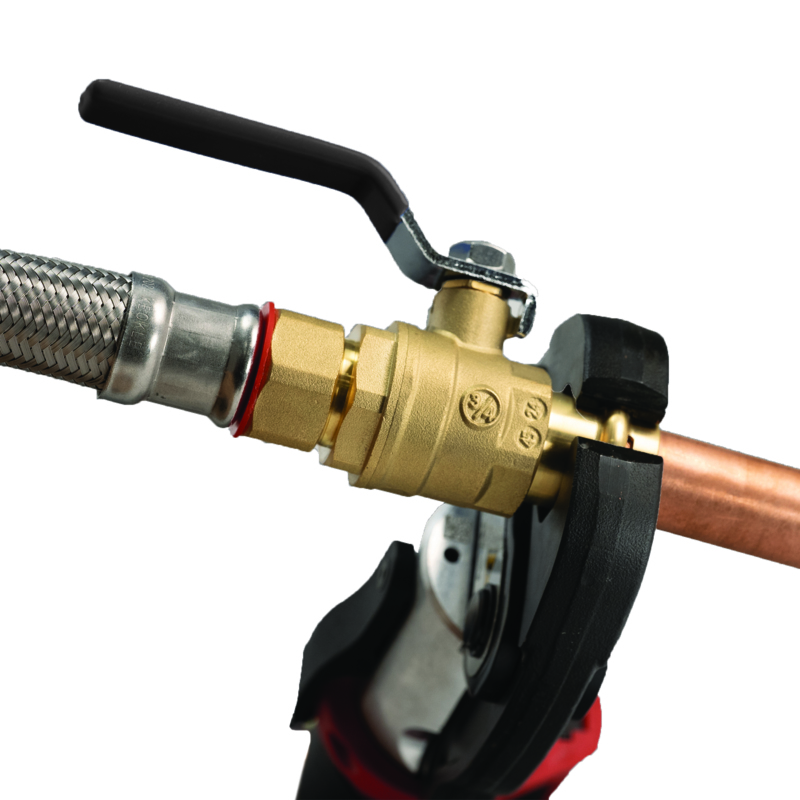

SurePress® Water Heater Connectors are available in braided or corrugated stainless steel hose styles, in both 18″ and 24″ lengths. Contractors can also choose models with an integrated ¼-turn brass ball valve for convenient water shutoff or standard fitting-end models.

Are SurePress® Water Heater Connectors lead free?

Yes. They are manufactured with lead-free materials and are safe for potable water applications.

What types of copper pipe are compatible?

SurePress® Water Heater Connectors are designed for ASTM B88 Type K, L, and M hard copper tubing in 3/4″ nominal size.

What pressure and temperature ratings do these connectors have?

They are rated for a maximum operating pressure of 250 psi, a maximum burst pressure of 600 psi, and operating temperatures from 0°F to 200°F.
